silcovert gn

Silcovert N

Safety

Safety

High Availability with arc protected or arc detection

Efficiency

Efficiency

Energy saving VFD compared to DOL, CO2 savings and motor revamping

Reliability

Reliability

Easy Integration & Low impact on the grid ( harmonic, power factor)

Adaptability

Adaptability

High Adaptability for Basic configuration & Large number of configurations

Remote

Remote

Real-time remote commissioning assistance with smart glasses

Support

Support

We provide 24/7 service and remote monitoring globally

Overview

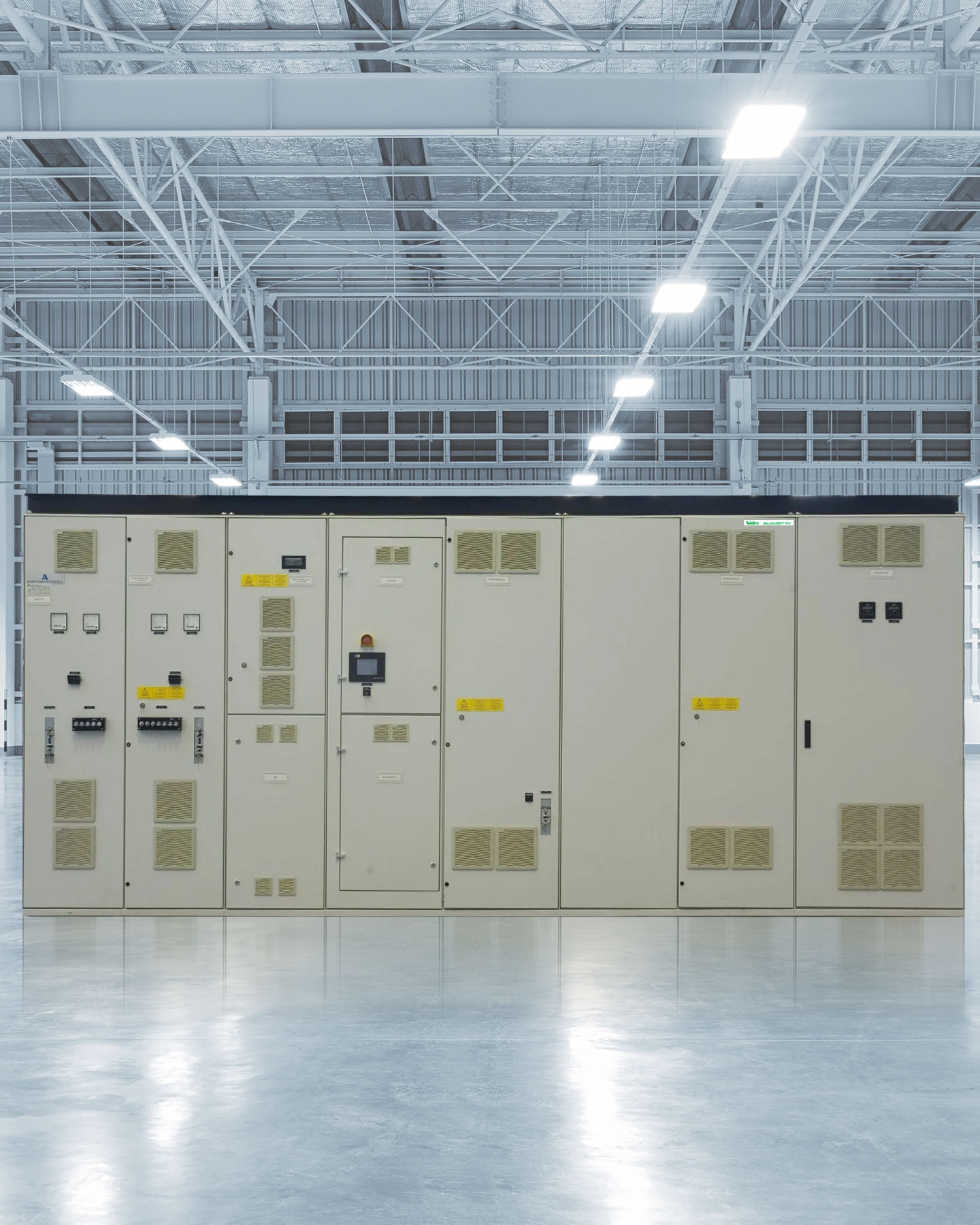

Silcovert N

The Silcovert N Series (TN/GN) is the ideal solution for regenerative operation and high-demanding performance. Using proven IGBT/IGCT technology our variable frequency drives are custom engineered to provide outstanding static and dynamic performance with a high level of efficiency across the driven equipment’s entire operating range. Fully regenerative operation (with AFE – Active Front End – option) provides bi-directional power flow at near unity power factor from zero to full speed eliminating the need for costly VAR compensation systems. This is particularly useful when the drive is used for continuous power generation.

TECHNICAL INFORMATION

NETWORK CONFIGURATION: From 12 pulses to 24 pulses and AFE

OUTPUT VOLTAGE: Up to 3.3kV

Input frequency: 60Hz/50Hz

Power factor: >0,95 for DFE or 1 for AFE

Harmonic compliance on the Grid: IEEE 519 and IEC

Motor harmonics: Less than 5%

Efficiency: 96.5% with transformer

TOPOLOGY: VSI, Neutral Point Clamped

IP degree: IP42

Standard: IEC, ABS certification, DNV certification, Marine design

ARC PROOF DESIGN: Yes

Cooling: Air cooling / Water Cooling

Power range: Up to 60MW

Long cable application: Up to 400m without filter, More with filter

Control: V/hz, vector control and Field oriented control / Fly catch / Ride through capability

Redundant cooling: Yes N+1

Output Frequency: Up to 140Hz, more on request
